Transmitter for Automation

Request a quote

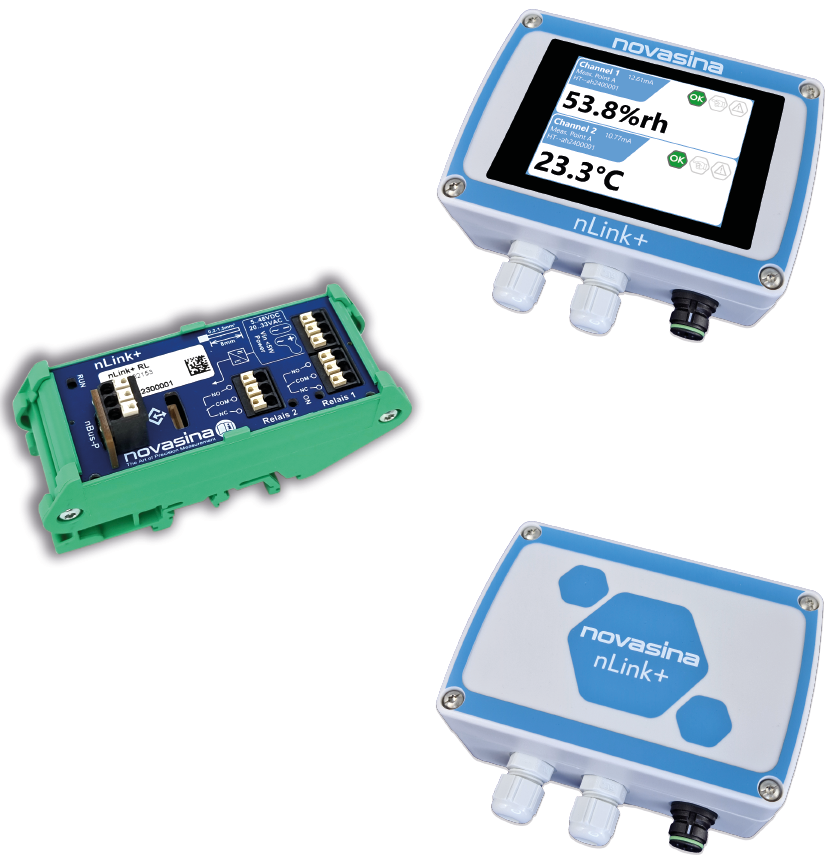

Available in IP and EC housing

Display optionally available

Transmitter available with analog (4…20mA or 0-10V), ModbusRTU or Relay

Configuration with Novasina USB cable for Windows PC

Possibility to read

  • Relative and Absolut Humidity
  • Temperature
  • Dewpoint
    Temperature
  • Differential and Absolute Pressure

Sensor connection

  • Possibility to conntect the nSens sensor directly to the transmitter or to use a cable length of up to 100m between the transmitter and the sensor via a digital signal (nBus)

Signal outputs

  • 2 analog outputs on the AS transmitter
  • Possibility to connect 2 sensor to one transmitter in the Modbus model using a Y-adapter (2602147)
  • 2 configurable relay outputs

DOWNLOADS

Documents such as datasheets, installation guides and software are available upon request.

Get in touch

Accessoires

Configuration & Mounting:

  • Configuration cable nlink-USB Art-No: 2601818
  • Wall mount / din rail mount Art-No: 2602053
