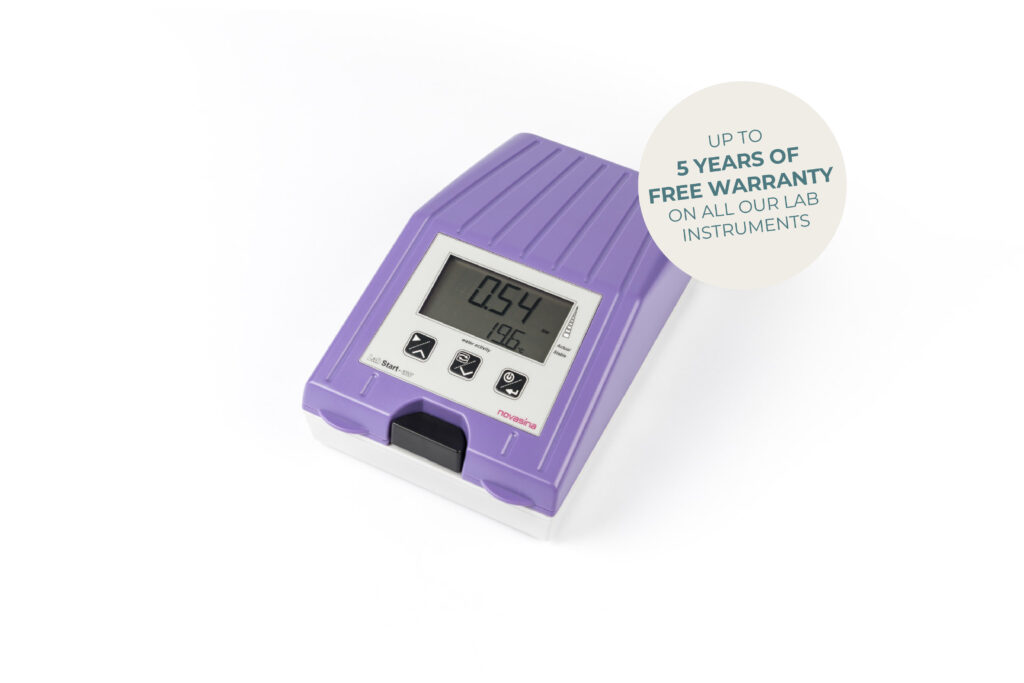

LabStart-aw
Inexpensive AW meter for measurements in the low to medium AW range.
Ideal for the first step:
designed as a „starter“, proven Novasina technology can be found inside, especially the resistive electrolytic sensor
covers a lower demand on accuracy and reproducibility
Specifications:
| Water activity sensor | Temperature sensor | |
| Measuring principle | Electrolytic resistive | NTC |
| Measuring range | 0.03…1.00aw | 0…30°C (59…86°F) |
| Adjustment range | 0.11…0.75aw | N/A |
| Resolution | 0.01aw | 0.1°C |
| Accuracy | +/-0.03aw within calibration range | +/-0.15°C |
| Precision | +/-0.01aw within the adjustment range | +/-0.1°C |
| Repeatability | +/-0.01aw within calibration range | N/A |
| Temperature control | no temperature control available | |
| Adjustment point (%rH) | 33%, 75% | |
| Mains connection | 5 VDC, +/-6%, max. Power consumption 10W | |
| Power supply | 90…264 VAC 50/60 Hz | |
| Display | LC-display, dimensions: 35 x 69mm | |
| Communication | N/A | |
| Housing | > Two-part PC/ABS housing, weight: 1.2kg > Dimensions (L x W x H) = 225x140x85mm | |
| Measuring chamber volume | 15mL | |
| Dimensions sample container | Diameter 30mm x height 14mm | |
| Protection class | IP22 | |
DOWNLOADS
Documents such as datasheets, installation guides and software are available upon request.
Scope of supply
- LabStart-aw water activity measuring instrument
- 20x Sample cups
- 1x SAL-T reference salt: 75%
- Factory calibration certificate
