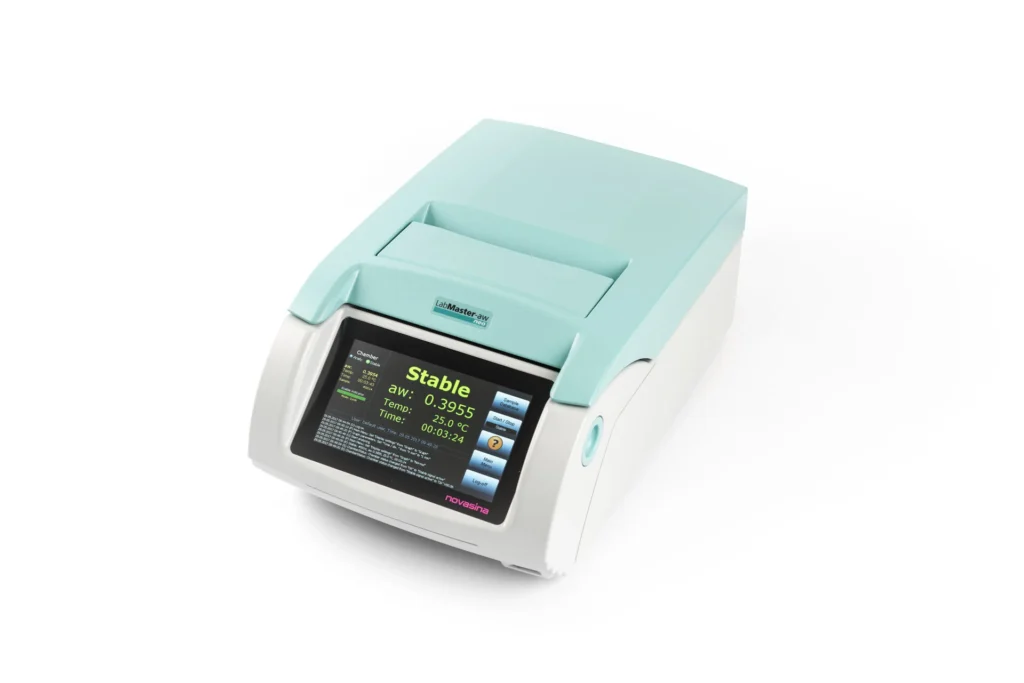

LabMaster-aw neo

Top water activity measuring device with technological lead, perfect for the daily routine determination of water activity in QA laboratories of food and pharmaceutical companies.

Request a quote

    • The Labmaster-aw neo provides support in the investigation of the causes of product spoilage, texture changes or rancidity.

    Key advantages:

    Outstanding measuring instrument for effortless and worry-free water activity measurement and documentation, including:

    Measuring range from 0.030 to 1.000aW

    Full thermostatisation in the range of 0-60°C

    Fast mode that guarantees results within 10 minutes

    Automatic verification or adjustment

    A simple protective filter handling by magnet fixing

    Contactless salt standard identification by RFID

    Conformity with internation standards (AOAC, ISO, USP, ICH)

    21CFR11 compliant audit trail and user management

    Specifications:

    Water activity sensorTemperature sensor
    Measuring principleElectrolyticSurface infrared sensor
    Measuring range0.0300…1.0000aw*0…60°C (32…140°F)
    Adjustment range0.0400…1.0000aw*N/A
    Resolution0.0001aw0.01°C
    Accuracy+/-0.0030aw within the adjustment range+/-0.1°C
    Precision+/-0.0020aw within the adjustment range+/-0.1°C
    Repeatability+/-0.0010aw within calibration reangeN/A
    Adjustment point (%rH)4%, 6%, 11%, 33%, 53%, 58%, 75%, 84%, 90%, 97%, 100%
    Salt standards are equipped with RFID chips to ensure error-free identification by the LabMaster-aw neo.
    Mains connection> 100… 260 VAC
    Power consumption:
    > Maximum: 42W
    > Normal operation: < 15W
    > Stand-By: < 0.1W
    Power supply90…264 VAC 50/60 Hz
    Display7“ capacitive Touchscreen
    Communication> RS-232 and USB 2.0 for PC
    > RS-232 for printer Epson TM-U220D
    > SD card
    > XML to LIMS
    Housing> Hybrid of painted steel housing and PUR
    > Weight: approx. 10kg
    > Dimensions (LxWxH)= 423x260x186mm
    Height with open ceiling: 462mm
    Measuring chamber volume12mL
    Dimensions sample containerDiameter 40mm x Height 13mm
    Protection classIP20
    21CFR 11> 21CFR11 compliant Audit Trail
    > 21CFR11 compliant user management

    DOWNLOADS

    Documents such as datasheets, installation guides and software are available upon request.

    Get in touch

    Scope of supply

    • LabMaster-aw neo water activity measuring instrument
    • 40x Sample cups
    • 7x SAL-T reference salts: 11%, 33%, 58%, 75%, 84%, 97%, 100%
    • Factory calibration certificate
    • Regeneration kit (for sensor recovery)

    Sensor available with either aw-Sens ENS or ELS measuring cell. Use ENS for regular samples and ELS for samples containing >0.1 vol% ethanol.
